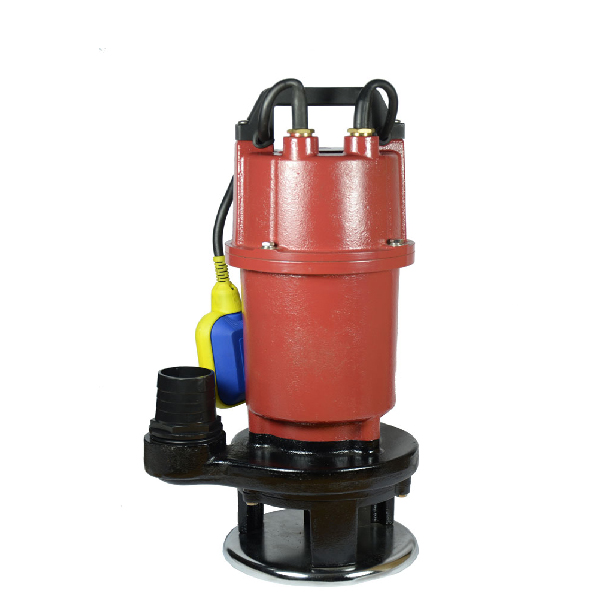

WQD15-15QG
Working condition:
1, The maximum deep allowed in water is 5m from impeller center
2, The trans medium PH: 4-10
3, The trans medium's temperature shouldn't be higher than 40ºC
4, Sand contents shall be max 2% by volume
| Name | Model | Power(w) | Remarks | Voltage(v) | Max Head(m) | Max Flow | Input/output size |
| Submersible Pump (Sewage Pump) | WQD10-10-0.55 | 550 | copper wire | 220 | 10 | 180 L/min | 2" |
| WQD10-12-0.75 | 750 | copper wire | 220 | 12 | 250 L/min | 2" | |
| WQD10-15-1.10 | 1100 | copper wire | 220 | 15 | 300 L/min | 2" | |
| WQD15-15QG | 1100 | copper wire | 220 | 14 | 300 L/min | 50mm | |
| V1100F | 1100 | copper wire | 220 | 9 | 330 L/min | 50mm | |
| V1500F | 1500 | copper wire | 220 | 22 | 240 L/min | 50mm | |
Working condition:
1, The maximum deep allowed in water is 5m from impeller center
2, The trans medium PH: 4-10
3, The trans medium's temperature shouldn't be higher than 40ºC
4, Sand contents shall be max 2% by volume
| Name | Model | Power(w) | Remarks | Voltage(v) | Max Head(m) | Max Flow | Input/output size |
| Submersible Pump (Sewage Pump) | WQD10-10-0.55 | 550 | copper wire | 220 | 10 | 180 L/min | 2" |
| WQD10-12-0.75 | 750 | copper wire | 220 | 12 | 250 L/min | 2" | |
| WQD10-15-1.10 | 1100 | copper wire | 220 | 15 | 300 L/min | 2" | |
| WQD15-15QG | 1100 | copper wire | 220 | 14 | 300 L/min | 50mm | |
| V1100F | 1100 | copper wire | 220 | 9 | 330 L/min | 50mm | |
| V1500F | 1500 | copper wire | 220 | 22 | 240 L/min | 50mm | |
