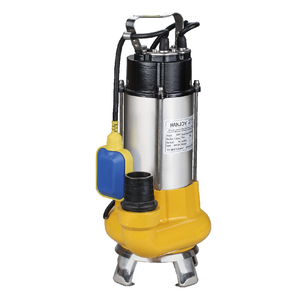

V1100DF / V1300DF
Working condition:
1.The maximim deep it is allowed in water is 5m from its center of impeller.
2.The trans medium's temperature shouldn't be higher than 40℃
3.Trans medium PH:4-10
4.The kinematics viscosity of the trans is 7x10-7~23x10-6m2/S
5.The maximim density of the trans medium is 1.2x103kg/m3
| Name | Model | Power(w) | Remarks | Voltage(v) | Max Head(m) | Max Flow | Input/output size |
| Submersible Pump (Cutting Sewage Pump) | V1100DF | 1100 | copper wire | 220 | 8 | 250 L/min | 50mm |
| V1300DF | 1300 | copper wire | 220 | 12 | 300 L/min | 50mm | |
Working condition:
1.The maximim deep it is allowed in water is 5m from its center of impeller.
2.The trans medium's temperature shouldn't be higher than 40℃
3.Trans medium PH:4-10
4.The kinematics viscosity of the trans is 7x10-7~23x10-6m2/S
5.The maximim density of the trans medium is 1.2x103kg/m3
| Name | Model | Power(w) | Remarks | Voltage(v) | Max Head(m) | Max Flow | Input/output size |
| Submersible Pump (Cutting Sewage Pump) | V1100DF | 1100 | copper wire | 220 | 8 | 250 L/min | 50mm |
| V1300DF | 1300 | copper wire | 220 | 12 | 300 L/min | 50mm | |
